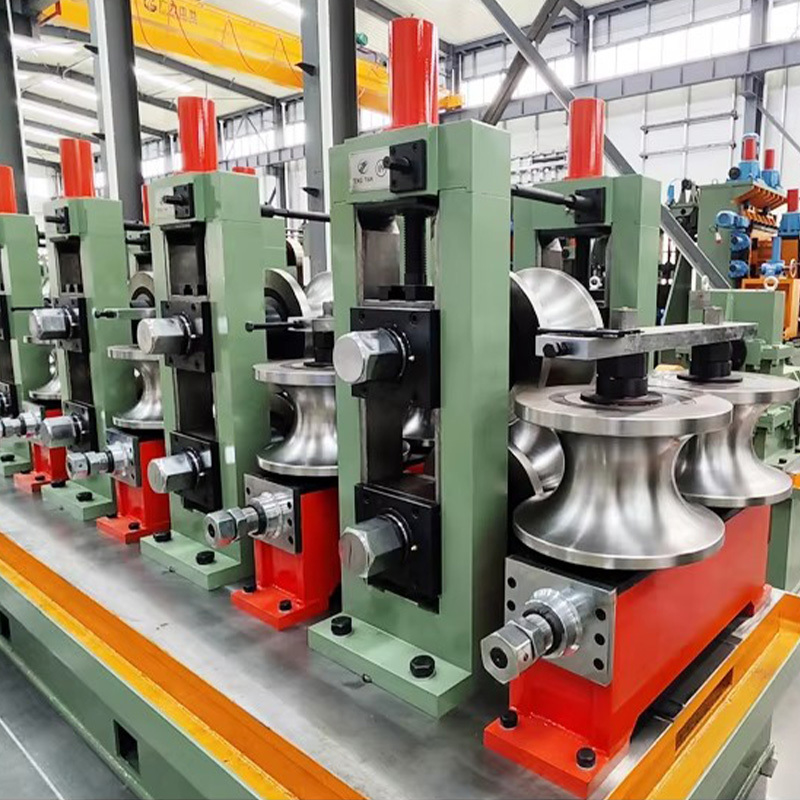

Q235 Carbon Steel Pipe Making Machine for Round Pipes 219mm

Name: Q235 Carbon Steel Pipe Making Machine for Round Pipes 219mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG219
Price: 50,000.00 USD
Availability: InStock

Détails du produit:

Lieu d'origine:	La Chine
Nom de marque:	TengTian
Certification:	BV,CE,ISO
Numéro de modèle:	HG219

Des informations détaillées

Lieu d'origine:

La Chine

Nom de marque:

TengTian

Certification:

BV,CE,ISO

Numéro de modèle:

HG219

Nom du produit:

Machine à fabriquer des tubes en acier au carbone Q235 pour tubes ronds

Coil:

Q235

Diamètre:

Pour les véhicules à moteur électrique

Épaisseur:

6 mm

longueur:

6-9M

Poids:

8 tonnes

Coupeuse:

scie à chaud

Tableau de débit:

18m

mot clé:

Machine de fabrication de tuyaux en acier au carbone pour tuyaux ronds

Mettre en évidence:

High Light

Mettre en évidence:

Q235 carbon steel pipe machine

round pipe making machine 219mm

steel pipe machine with warranty

Informations commerciales

Quantité de commande min:

1 ensemble

Prix:

$100000 to $1 million

Détails d'emballage:

enveloppement en film plastique, boîtier en bois pour composants électriques

Délai de livraison:

150 jours

Conditions de paiement:

L / C, T / T

Capacité d'approvisionnement:

21 ensembles par an

Description du produit

Q235 Carbon Steel Pipe Making Machine For Round Pipes

Product Specifications

Attribute	Value
Product Name	Q235 Carbon Steel Pipe Making Machine For Round Pipes
Coil	Q235
Diameter	219mm (max.)
Thickness	6mm
Length	6-9M
Weight	8 Tons
Cutter	Hot saw
Runout Table	18M

Product Description

This Q235 Carbon Steel Pipe Making Machine is designed to produce high-quality welded steel pipes, including round, square, and rectangular pipes. Featuring advanced roll pass design, the production line ensures precise machining and high-quality assembly.

Material Specifications

Standard: Conforming to YB189-64 standard
Material: Low carbon steel and low alloy steel, Q235
Strip Width: 320-700mm
Strip Thickness: 1.5-6.0mm
Inner Diameter of Coils: φ470～φ510mm
Outer Diameter of Coils: Φ1000～φ1800mm
Coil Weight: ≤8T

Pipe Specifications

Pipe Size:
- Round Pipe: ø89-219mm
- Square Pipe: 80x80 - 175x175mm
Thickness: 1.5-6.0mm
Length: 6m
Forming Speed: 20-50 m/min

Buyer-Supplied Requirements

Total capacity: Around 850 kw
Circulation Cooling Water (whole system):
- Flow: 20T/h～30 T/h
- Pool Volume: 30m³
Compressed Air (whole system):
- Flow: 5m³/min
- Pressure: 5-7kg/㎡
Cable: All cables outside of the machine must be purchased after machine installation

Note: We typically send 2-3 engineers to perform installation and commissioning. The buyer is responsible for providing round-trip tickets, food & accommodation, local transportation, and a technical service fee of $150 per day per engineer.
