High Frequency high precision Steel Pipe Making Machine

Name: High Frequency high precision Steel Pipe Making Machine
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: Solides solubles 60
Price: 50,000.00 USD
Availability: InStock

Détails du produit:

Lieu d'origine:	CHINE
Nom de marque:	TENGTIAN
Certification:	CE ISO9000 BV
Numéro de modèle:	Solides solubles 60

Des informations détaillées

Lieu d'origine:

CHINE

Nom de marque:

TENGTIAN

Certification:

CE ISO9000 BV

Numéro de modèle:

Solides solubles 60

Nom de production:

Tuyau d'acier à haute fréquence de haute précision faisant la machine

Modèle:

Solides solubles 60

Fonctionnalité:

haute précision et bonne stabilité

Taille maximale:

1,8 x 60 millimètres

Épaisseur:

0.4 - 1,8 millimètres

Longueur:

6 - 8 m

Garantie:

D'un an

Mots clés:

Machine de fabrication de tuyaux à haute fréquence en acier

Mettre en évidence:

High Light

Mettre en évidence:

high precision steel pipe machine

high frequency pipe making machine

steel pipe machine with warranty

Informations commerciales

Quantité de commande min:

1 set

Prix:

$100000 to $1 million

Détails d'emballage:

Package d'exportation standard

Délai de livraison:

120 jours ouvrables

Conditions de paiement:

L / c, d / a, d / p, t / t

Capacité d'approvisionnement:

4 set / an

Description du produit

High Frequency Steel Pipe Making Machine

Product Specifications

Attribute	Value
Production Name	High Frequency Welded Pipe Mill Line Control By CNC Steel Pipe Making Machine
Model	SS 60
Feature	High precision and good stability
Max size	1.8 X 60 mm
Thickness	0.4 - 1.8 mm
Length	6 - 8 m
Warranty	One year

Product Description

The high-frequency welded pipe production line is designed for manufacturing electric welded stainless steel pipes with diameters of Φ12-Φ60mm and wall thicknesses of 0.4-1.8mm. This CNC-controlled steel pipe making machine delivers exceptional precision and stability, with main components processed by CNC machining centers to ensure superior product quality.

Main Parameters and Specifications

Material Specifications

Material	Carbon Steel
Mechanical properties	δs≤500Mpa δb≤235Mpa
Strip Width	36-190mm
Strip Thickness	0.4-1.8mm
Inner Diameter of Coils	Φ460-Φ520mm
Outer Diameter of Coils	Φ1200-Φ1800mm
Coil Weight	2.5T

Pipe Specifications

Pipe Diameter	Round pipe: φ12-φ60mm
Thickness	0.4-1.8mm
Length	6-8m
Pipe-cutting Precision	±1.5mm
Forming Speed	20-120m/min

Buyer Requirements

Work shop: 80x6m, H＞5m (crane to ground)
Power: Approx.450KW 380V/50Hz/3phases
Circulation Cooling Water (whole system): Flow:20T/h～30 T/h Pool Volume:40m3
Compressed Air: Flow:5m3/min 5-7kg/cm2

Technical Documentation Provided

Instruction Manual (provided at the time of a month before delivery time)
Inspection Certificate (provided at the delivery time)
Loading Order (Provided at the delivery time)
Layout Drawing (provided at the time of a month before delivery time)
Ground Base Drawing (provided at the time of a month before delivery time)
Electrical Principle Diagram
Overall Assembly Drawing of every unit of the line
Part Diagram of Vulnerable Parts

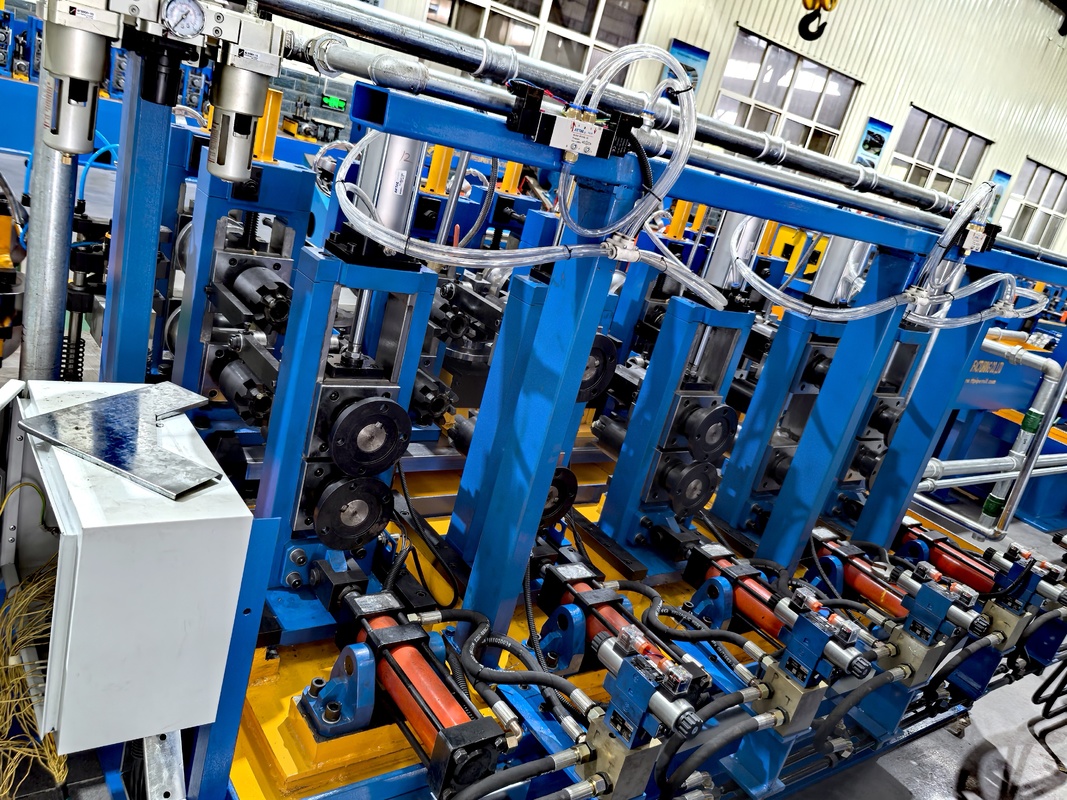

Product Images

High Frequency high precision Steel Pipe Making Machine 5

High Frequency high precision Steel Pipe Making Machine 6

High Frequency high precision Steel Pipe Making Machine 7

High Frequency high precision Steel Pipe Making Machine 8
