tuyau d'acier faisant la machine
>

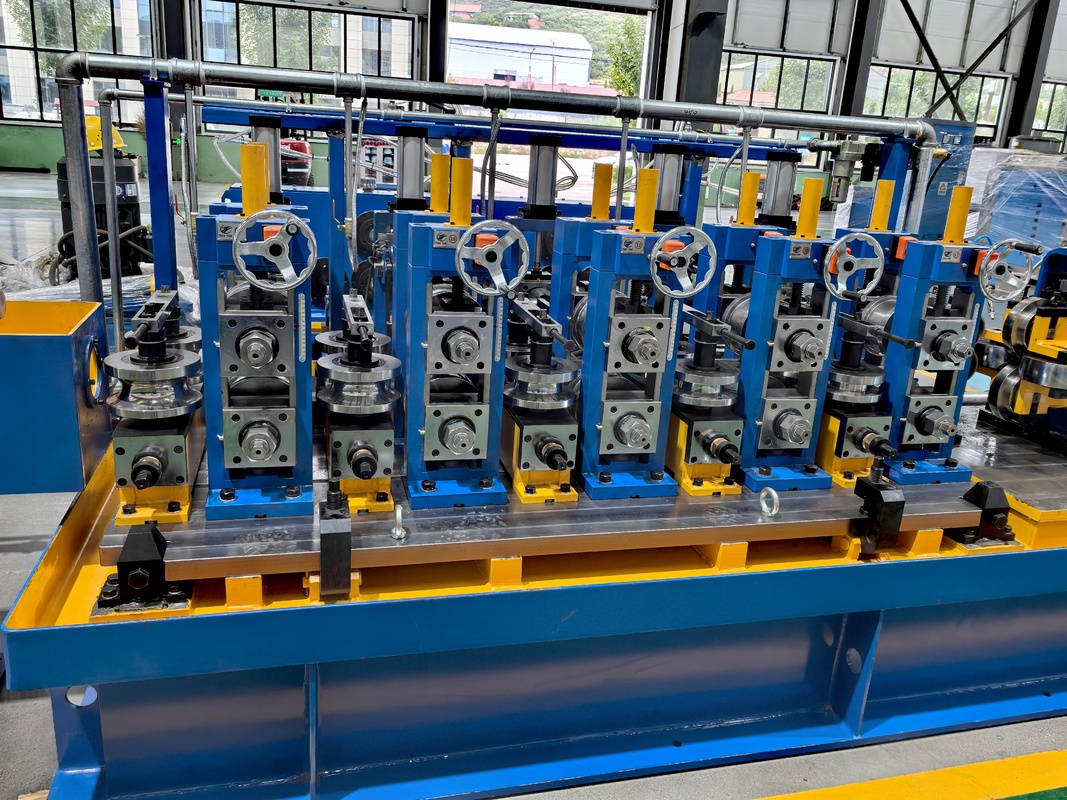

ERW Steel Pipe Making Machine 80m/min PLC Control Carbon Steel

ERW Steel Pipe Making Machine 80m/min PLC Control Carbon Steel

Détails du produit:
Lieu d'origine: CHINE
Nom de marque: TENG TIAN
Certification: CE / ISO 9001
Numéro de modèle: TT40
Des informations détaillées
Lieu d'origine:
CHINE
Nom de marque:
TENG TIAN
Certification:
CE / ISO 9001
Numéro de modèle:
TT40
Matériel:
Carbone
Type de soudage:
Soudage ERW
Vitesse de soudage:
Max.80m / min
Système de contrôle:
PLC Contrôle
Moteur:
Siemens
Couleur:
Bleu
Diamètre OD:
9 à 51 mm
Épaisseur:
0,2-1,5 mm
Mettre en évidence:

High Light

Mettre en évidence:

ERW steel pipe making machine with PLC control

,

carbon steel pipe machine 80m/min

,

PLC controlled steel pipe manufacturing machine

Informations commerciales
Quantité de commande min:
1 set
Prix:
$100000 to $1 million
Détails d'emballage:
Emballage d'exportation spécial et fixé dans le conteneur
Délai de livraison:
60 jours
Conditions de paiement:
T / t, l / c
Capacité d'approvisionnement:
100 sets / an
Description du produit
Blue Color Durable Professional Steel Pipe Manufacturing Machine 80m / Min CE
Product Specifications
Attribute Value
Material Carbon Steel
Welding Type ERW Welding
Welding Speed Max.80m/min
Control system PLC control
Motor Siemens
Colour Blue
OD Diameter 9-51mm
Thickness 0.2-1.5mm
TT40 PLC Control High Precision Steel Pipe Making Machine with ERW Welding

This PLC-controlled high precision steel pipe making machine with ERW welding is designed for producing stainless steel and carbon steel pipes used in decoration, household appliances, and various products. The unit can produce round tubes, square tubes, rectangular tubes, as well as oval tubes, semi-circular tubes, and shaped tubes after mold drawing. Ideal for manufacturing stainless steel staircase handrails, doors, windows, tables, and chairs.

Key Features
  • CNC equipment parts processing ensures high product precision
  • Durable machine construction with minimal maintenance requirements
  • Premium components including Siemens motor and Pearl River reducer for high performance
  • Fully automated operation with simple controls for continuous, efficient production
  • 15% faster tube speed than industry standards for higher yield
  • Low production costs with material waste reduction (98% tubing yield)
  • Professional technical support team available for troubleshooting
ERW Steel Pipe Making Machine 80m/min PLC Control Carbon Steel 0
Technical Parameters
No. Model Pipe Size Thickness Speed(m/min) Capacity(KW) HF(KW) Area(LxW in Metres)
1 HG20 ø8 - ø20 mm 0.3 - 1.5 mm 30 - 150 210 100 40*12
2 HG32 ø10 - ø32 mm 0.4 - 2.0 mm 30 - 150 300 150 40*12
3 HG50 ø16 - ø50 mm 0.7 -2.5 mm 30 - 150 410 200 60*12
4 HG60 ø22 - ø60 mm 0.9 - 3.0 mm 30 - 150 410 200 60*12
5 HG76 Ø25 - ø76 mm 1 - 4 mm 30 - 120 580 300 80*16
6 HG89 Ø32 - ø89 mm 1 - 4.5 mm 30 - 100 660 300 100*16
7 HG114 Ø45 - ø114 mm 1.5 -5 mm 30 - 80 920 400 100*16
8 HG140 Ø50 - ø140 mm 1.5 - 5.5 mm 30 - 80 920 400 100*16
9 HG165 Ø60 - ø165 mm 2 - 6 mm 30 - 60 1100 500 100*16
10 HG219 Ø114 - ø219mm 3 - 8 mm 20 - 45 1400 600 150*16
11 HG273 Ø114 - ø273mm 4 - 12 mm 15 - 30 2100 800 160*18
12 HG325 Ø165 - ø325 mm 4 - 14 mm 10 - 30 2500 1000 200*24
13 HG426 Ø165 - ø426 mm 4 - 16 mm 8 - 25 2900 1200 250*24
14 HG508 Ø219 - ø508 mm 5 - 18 mm 5 - 18 3400 1600 300*24
15 HG610 Ø355 - ø610 mm 5 - 18 mm 5 - 18 3700 1600 300*24
16 HG760 Ø426 - ø760 mm 5 - 20 mm 5 - 20 4300 1800 300*24
ERW Steel Pipe Making Machine 80m/min PLC Control Carbon Steel 1
