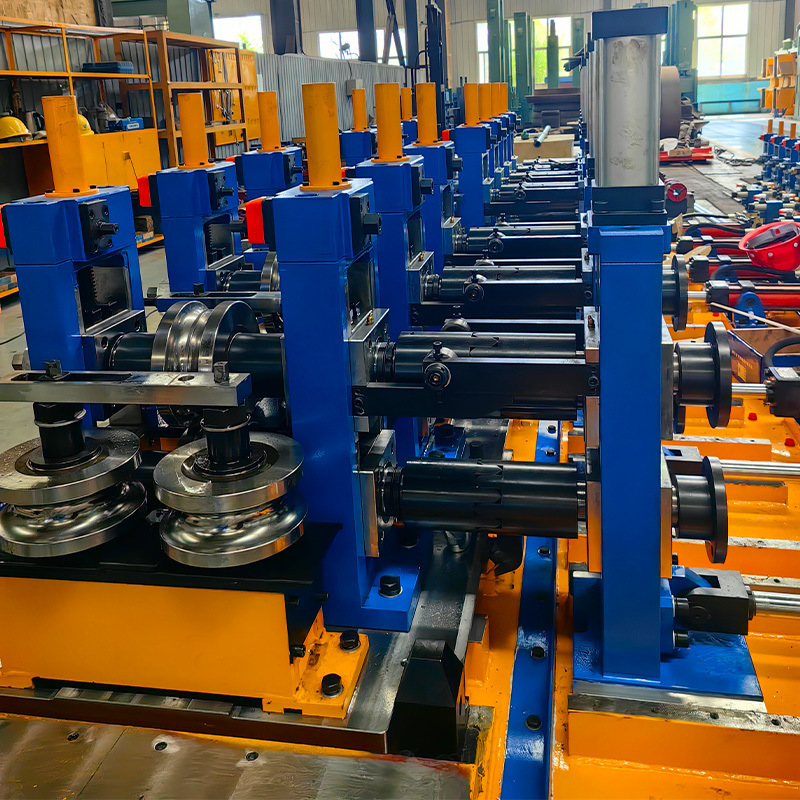

High Speed ERW Square Tube Mill for Carbon Steel 19-60.3mm

Name: High Speed ERW Square Tube Mill for Carbon Steel 19-60.3mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: Hg60
Price: 50,000.00 USD
Availability: InStock

Détails du produit:

Lieu d'origine:	Hebei
Nom de marque:	Teng Tian
Certification:	CE / ISO9001:2008/ BV
Numéro de modèle:	Hg60

Des informations détaillées

Lieu d'origine:

Hebei

Nom de marque:

Teng Tian

Certification:

CE / ISO9001:2008/ BV

Numéro de modèle:

Hg60

Nom de l'usine:

Fabrication de tubes en acier au carbone à haute précision

Vitesse de ligne:

Max.100m / min

Méthode de formation:

Roll à froid formant par des rouleaux

Type de soudage:

Soudage à fortes fermées

Coupe:

Scie froide; Sans bavure

Fonctionnalité:

Haute précision; Plus stable; Grande vitesse;

Personnalisé:

Conception de machine conformément aux exigences du client

Plage de diamètre:

19-60,3 mm

Plage d'épaisseur:

0.7-3.0mm

Mettre en évidence:

High Light

Mettre en évidence:

ERW square tube mill for carbon steel

high speed square tube mill 19-60.3mm

carbon steel square tube mill with warranty

Informations commerciales

Quantité de commande min:

1 ensemble

Prix:

$100000 to $1 million

Détails d'emballage:

Emballage d'exportation spécial et fixé dans le conteneur

Délai de livraison:

3 mois

Conditions de paiement:

T/T, L/C

Capacité d'approvisionnement:

100 sets / an

Description du produit

High Precision Carbon Steel Pipe Roller Forming High Speed ERW Square Tube Mill

Key Specifications

Attribute	Value
Mill Name	High Precision Carbon Steel Pipe Roller Forming High Speed ERW Square Tube Mill
Line Speed	Max. 100m/min
Forming Method	Cold Roll Forming by Rollers
Welding Type	High Frequency Welding
Cutting	Cold Saw; Without Burr
Feature	High Precision More Stable High Speed
Customized	Machine Designing As Per Customer Requirement
Diameter Range	19-60.3mm
Thickness Range	0.7-3.0mm

Product Description

This high-speed ERW square tube mill is designed to produce welded pipes in diameters ranging from 19mm to 60.3mm with wall thicknesses from 0.7mm to 3.0mm, as well as corresponding square and rectangular pipes. These products are widely used in metallurgy, construction, transportation, machinery, and vehicle industries.

Production Process

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding → Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse

Technical Specifications

1. Raw Material

Material application	HRC, CRC, galvanized steel strips
Material grade	Low-carbon steel, low alloy steel: δs≤235Mpa
ID of the steel strips	Φ450-Φ508mm
OD of the steel strips	Φ800-Φ1500mm
Coiler weight	Max. 3000kg

2. Production Range

Round Pipe	19 - 60.3mm	Thickness: 0.7-3.0mm
Square Pipe	1616 - 5050mm	Thickness: 0.7-2.0mm
Rectangular Pipe	1520 - 6040mm	Thickness: 0.7-2.0mm

Additional Specifications

H.F. Welder	GGP200Kw Solid State
Line Speed	Max. 100m/min
Tube Length	4-12m
Pipe Dia. Accuracy	±0.03mm
Cutting Accuracy	±3mm
Installation Capacity	400kw

As a CE & ISO9001:2008 certified pipe making machine manufacturer and supplier in China, our high-quality, reliable performance machines with long service life have been exported to nearly 40 countries including Turkey, Egypt, Morocco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, Vietnam, and others.

For more information about this product, please don't hesitate to contact us. We're happy to assist you.
